Weather Monitor Using BLYNK IOT

Blynk is a popular IoT (Internet of Things) platform that allows you to easily build apps to control and monitor your IoT devices. It’s known for its:

• Drag-and-drop interface: Blynk uses a visual approach where you drag and drop widgets to create the user interface for your IoT app. This makes it accessible to both beginners and experienced developers.
• Wide hardware support: Blynk works with a variety of popular development boards like Arduino, ESP32, Raspberry Pi, and many more.
• Free cloud service: Blynk offers a free cloud service that allows you to connect your devices and manage them remotely.

Here’s a breakdown of what Blynk offers:

• Blynk app: This is the mobile app you use to control and monitor your IoT devices. You can build the app interface using the drag-and-drop tools.
• Blynk libraries: These libraries allow you to connect your hardware devices to the Blynk cloud and communicate with the Blynk app.
• Blynk.Edgent: This is an open-source hardware library that supports a wide range of development boards.

Blynk is a great option for anyone who wants to get started with building IoT projects. It’s easy to use, has a large community, and supports a wide range of hardware.

Introduction:

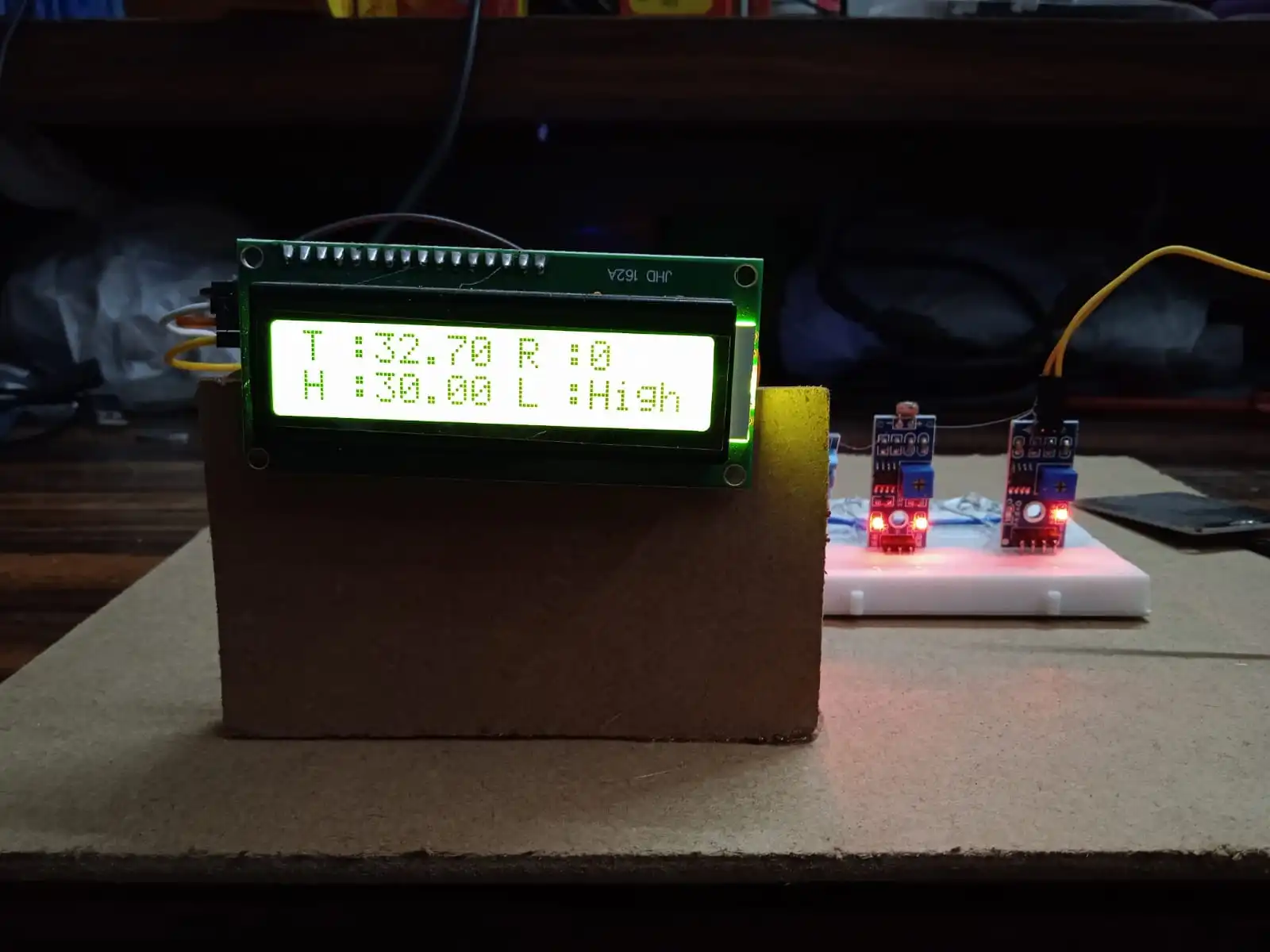

This report details a weather monitoring station project built using a NodeMCU Wi-Fi module and the Blynk IoT platform. The station monitors temperature, humidity, light intensity, and rainfall, and displays the collected data on a user-friendly Blynk app accessible from anywhere with an internet connection.

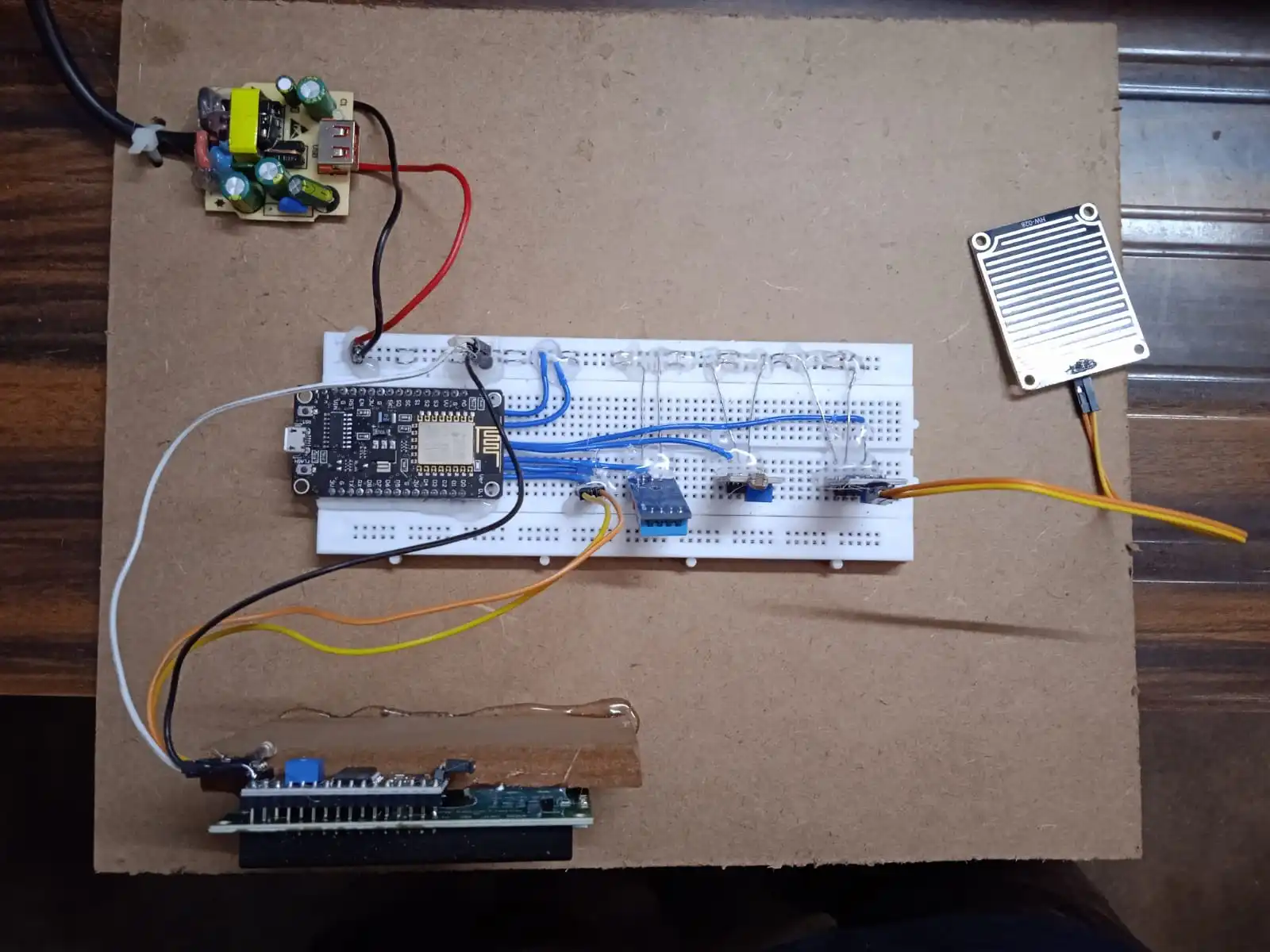

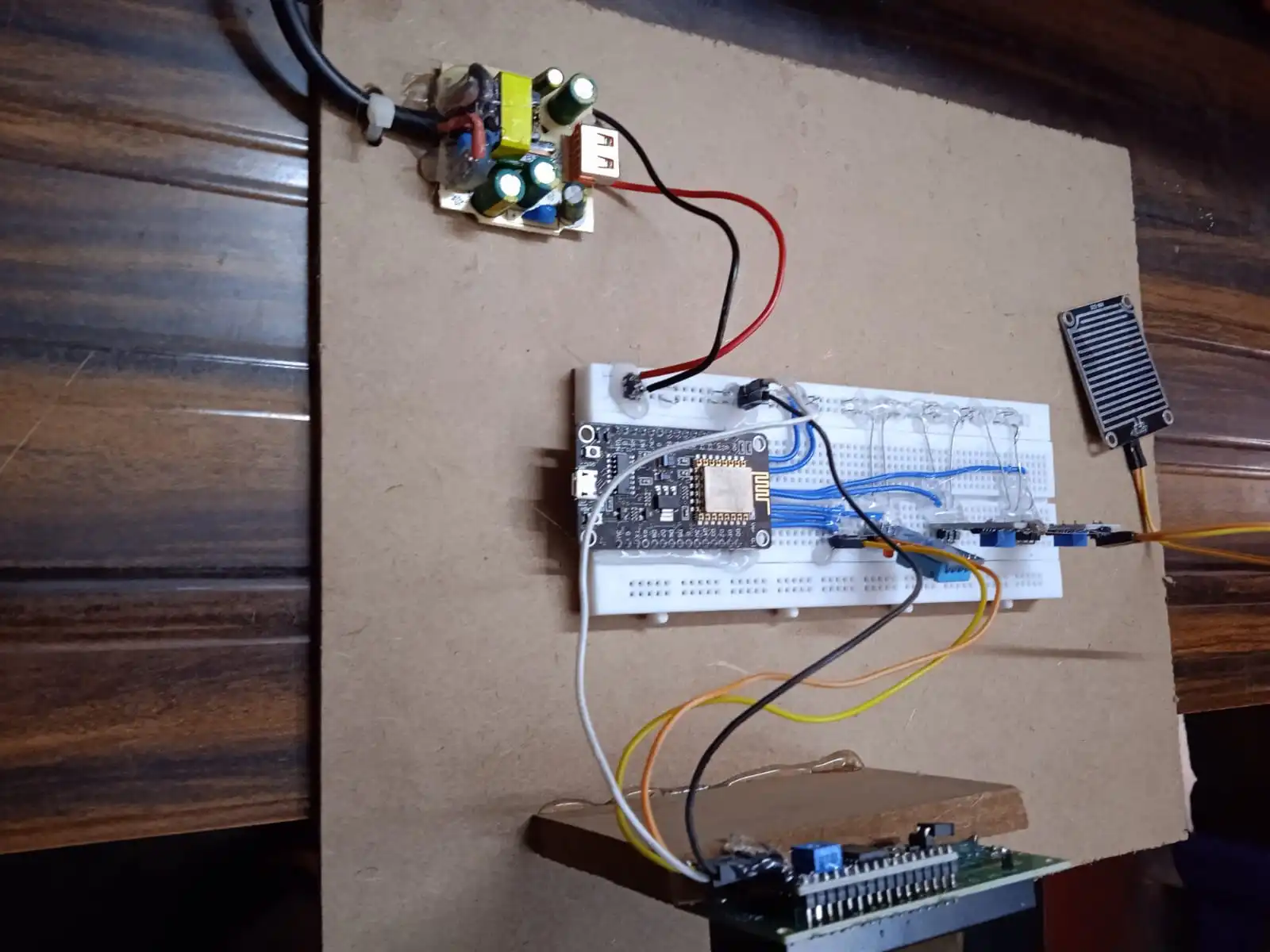

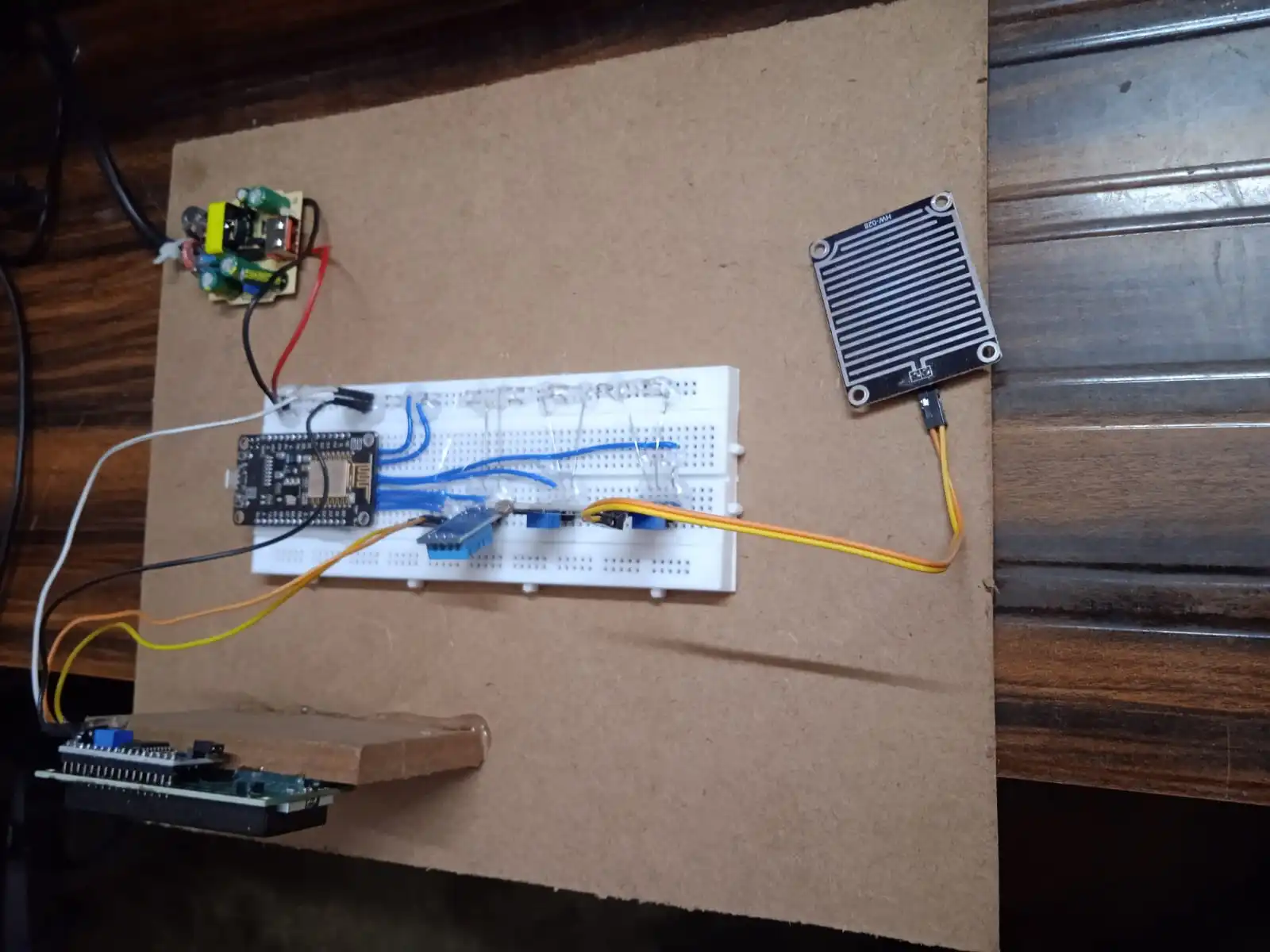

Components:

• Hardware:
  • NodeMCU Wi-Fi Module
  • I2c LCD Module
  • DHT11 Temperature & Humidity Sensor
  • LDR Sensor Module
  • Rain Drop Sensor Module
  • Breadboard and Jumper Wires
  • 5V DC Power Supply (220 AC to 5V DC converter)

Software:

• • Arduino IDE

• Blynk App
• Blynk Library
• DHT Library (if required by your specific DHT11 library)

System Design:

• The NodeMCU module acts as the central processing unit, collecting sensor data and communicating with the Blynk cloud.
• The DHT11 sensor measures temperature and humidity.
• The LDR sensor detects light intensity, providing an indication of ambient light levels.
• The Rain Drop sensor detects rainfall events.
• The 5V DC power supply provides power to the entire system.

Blynk App Interface:

• The Blynk app interface is designed using a drag-and-drop interface.
• Widgets like gauges, labels, and graphs can be used to display sensor readings in a clear and informative way.
• Users can monitor the current temperature, humidity, light level, and rainfall status remotely.

Data Transmission:

• Sensor data is collected by the NodeMCU at regular intervals (e.g., every 2 seconds).
• The NodeMCU transmits the collected data to the Blynk cloud using Wi-Fi.
• The Blynk app receives the data and updates the corresponding widgets on the user interface.

Benefits:

• This weather monitoring station provides real-time environmental data remotely.
• Users can track changes in temperature, humidity, light, and rainfall over time.
• The project is relatively inexpensive and easy to build, making it suitable for hobbyists and educational purposes.

Further Enhancements:

• The system can be extended to include additional sensors like pressure sensors or wind speed sensors.
• Data logging features can be implemented to store historical data for later analysis.
• Notifications can be set up to alert users about specific weather conditions.

Conclusion:

This weather monitoring station with Blynk IoT app demonstrates the power of combining affordable hardware and user-friendly platforms. The project provides valuable environmental data and allows for remote monitoring, making it a practical and educational tool.
