IOT Weather Station Using ESP32 Wifi Module

IoT Weather Station Project Report

Introduction:

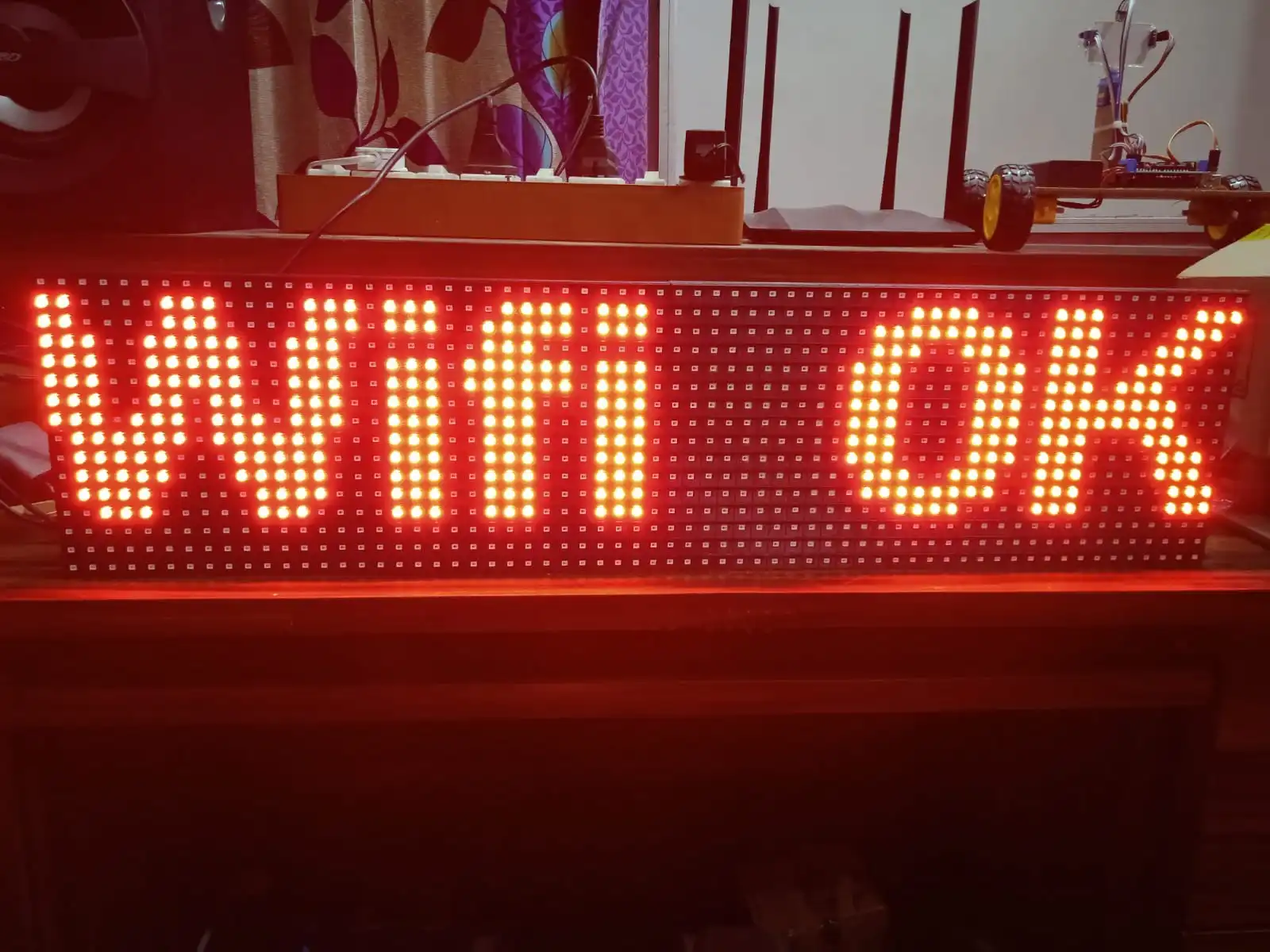

This project describes the development of an IoT weather station that displays real-time weather data on two P10 LED matrix displays. The system utilizes an ESP32 Wi-Fi module to connect to a weather API and retrieve relevant information.

Components:

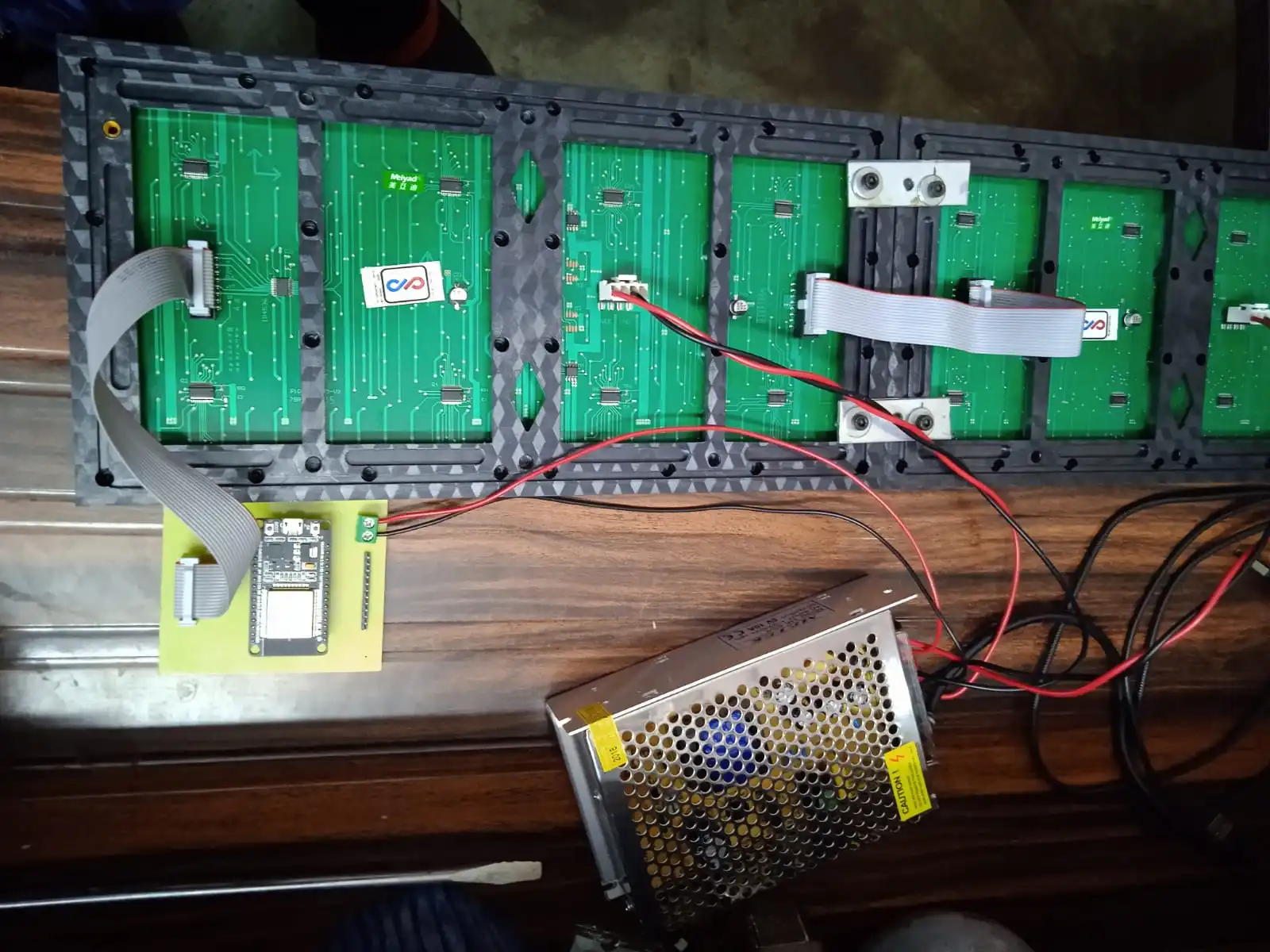

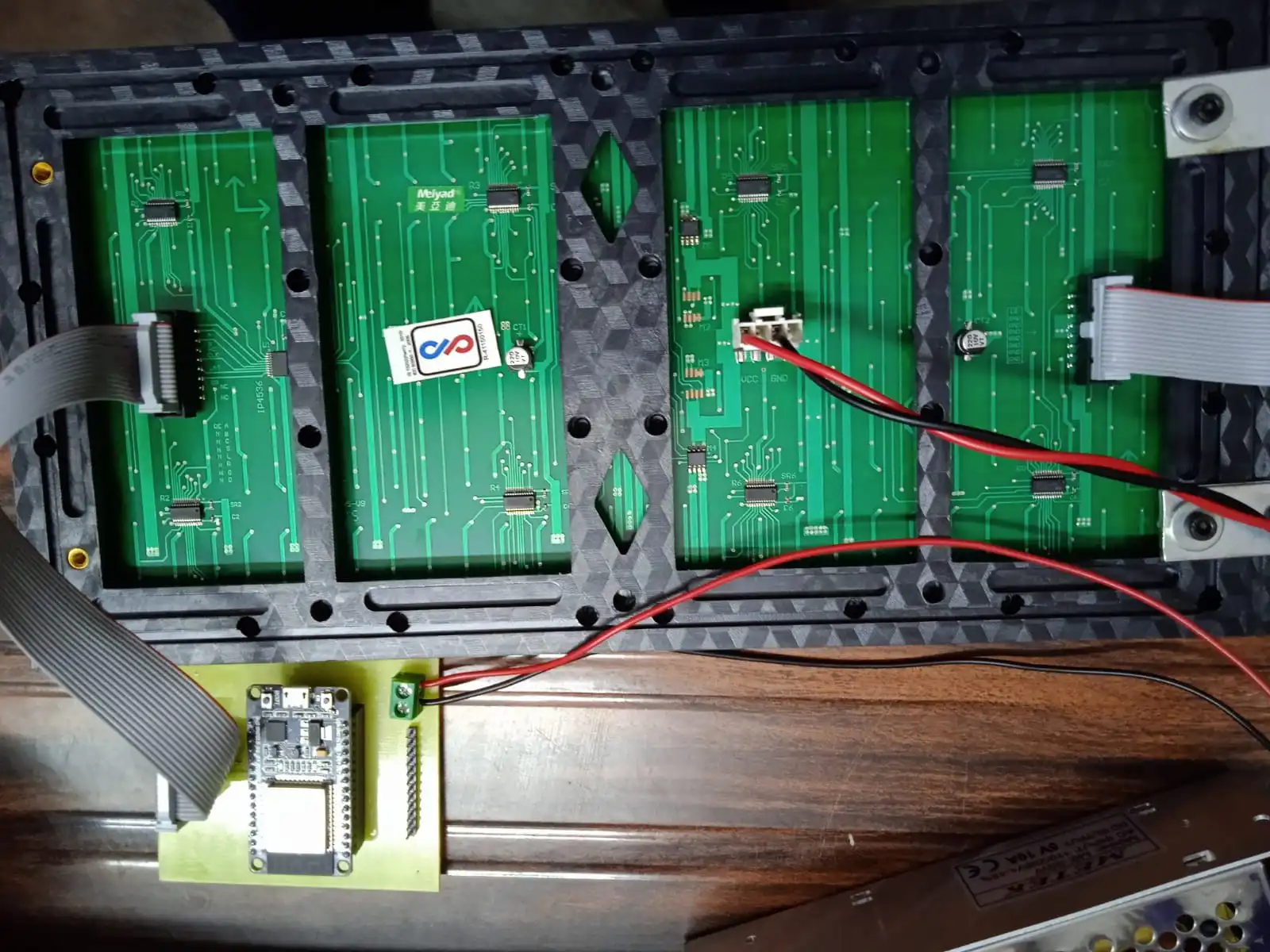

• Microcontroller: ESP32 Wi-Fi Module

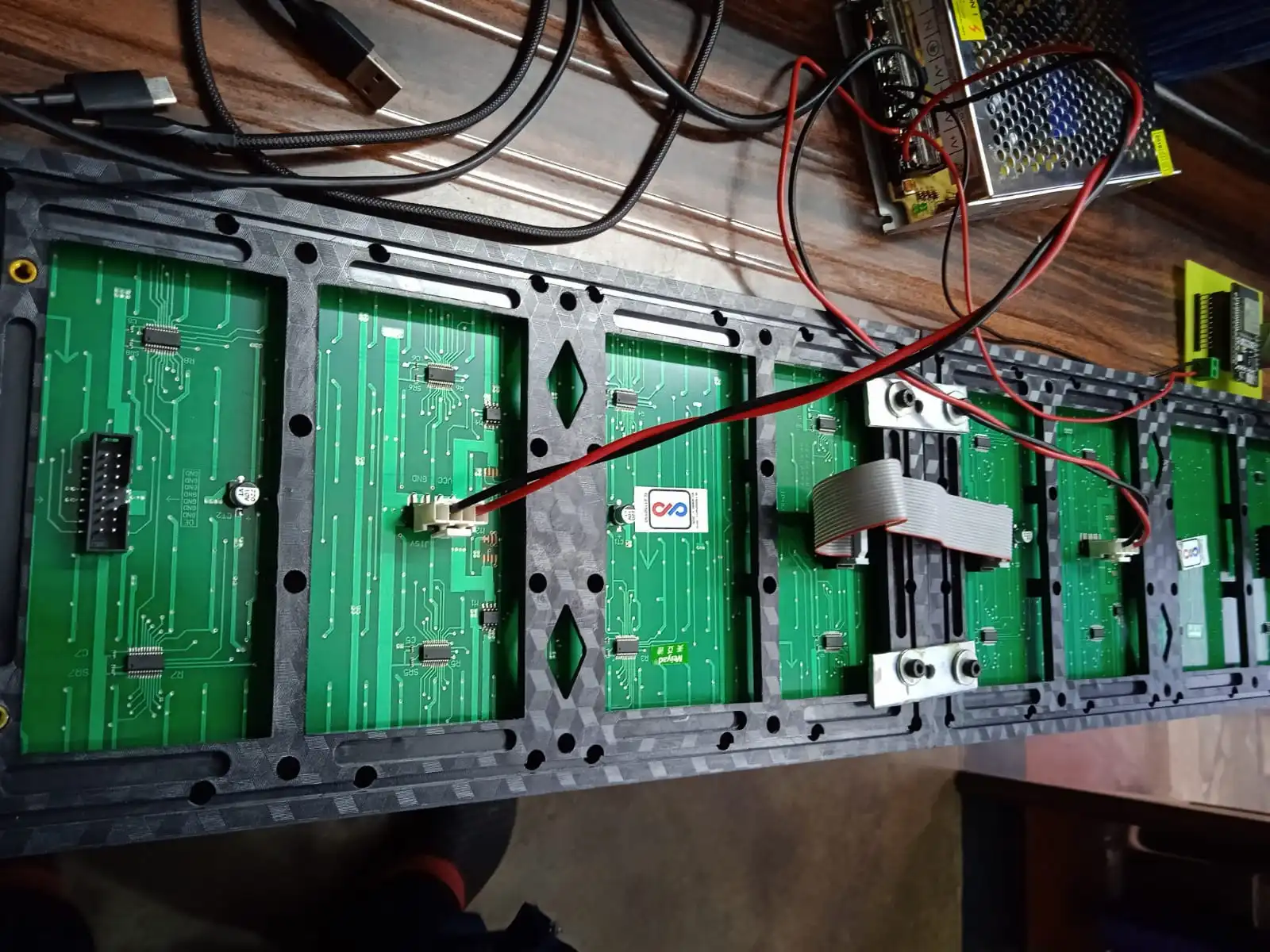

• Displays: 2 x P10 LED Matrix Displays
• Sensors (Optional): Can be added for on-site data collection (e.g., temperature sensor, wind speed sensor)
• Power Supply: Regulated power supply for ESP32 and displays

Functionality:

1. Data Acquisition:

   • The ESP32 connects to a Wi-Fi network.
   • The program makes an API call to a weather service using its built-in networking capabilities.
   • The API response containing weather data (date, time, temperature min/max, wind speed/direction, visibility, climate) is parsed.

2. Data Processing & Display:

   • Extracted weather data is formatted for display on the P10 LED matrices.
   • The ESP32 controls both displays to show the desired information.
   • The display can be programmed for scrolling text, static text, or a combination of both.

3. (Optional) On-Site Data Collection:

   • Additional sensors can be integrated to collect local weather data (temperature, humidity, etc.).
   • Sensor readings are combined with API data for a more comprehensive picture.

Software:

• The ESP32 is programmed using the Arduino IDE or similar platform.
• Libraries for the P10 display and Wi-Fi communication are required.
• The code includes functions for API calls, data parsing, and display control.

Report Sections:

• Project Overview: Briefly describe the purpose and functionalities of the weather station.
• Hardware Components: List and explain the functions of each hardware component.
• Software Development: Explain the programming language, libraries used, and the overall program flow.
• Data Acquisition & Processing: Describe how weather data is retrieved from the API and formatted for display.
• Display Control: Explain the methods used to control the P10 LED matrices and show information.
• (Optional) Sensor Integration: If applicable, explain how additional sensors are integrated and their data is used.
• Results & Discussion: Discuss the functionality of the weather station, potential improvements, and any challenges encountered during development.
• Conclusion: Summarize the project achievements and its potential applications.

Additional Considerations:

• Include schematics and code snippets (commented) in the report for better understanding.
• Discuss power consumption and battery life if the station is portable.
• Explore options for data visualization on the displays (icons, graphs).
• Consider implementing a web interface for remote monitoring of the weather data.

By following this outline and including relevant details, you can create a comprehensive report that showcases your work on the IoT weather station project.
