1. Introduction

Water is a critical resource for agriculture, and its efficient usage is essential for sustainable farming. Traditional irrigation methods often result in water wastage due to overwatering or delayed watering. To address this issue, automation in irrigation is becoming increasingly important. This report presents a project on a Soil Moisture Controller system using a soil moisture sensor, relay module, water pump, and 5V power supply. The system is designed to automate the irrigation process by turning the water pump on or off based on the moisture level of the soil.

2. Objective

The primary goal of this project is to develop a simple and low-cost automated system that can:

• Monitor the moisture level of the soil in real time.
• Automatically turn on the water pump when the soil becomes dry.
• Automatically turn off the pump when the soil moisture reaches an acceptable level.
• Minimize manual intervention and reduce water usage.

3. Components Used

3.1 Soil Moisture Sensor

The soil moisture sensor is a key component that detects the water content in the soil. It consists of two probes that are inserted into the soil. The sensor measures the resistance between the probes to determine moisture levels:

• Wet Soil: Low resistance, high conductivity, indicating good moisture.
• Dry Soil: High resistance, low conductivity, indicating dryness.

Most sensors output either an analog or digital signal. For this project, a digital soil moisture sensor is used, which sends a high or low signal based on the predefined moisture threshold.

3.2 Relay Module

A relay is an electromechanical switch that can be used to control high-voltage devices with low-voltage signals. The relay module in this project acts as an interface between the sensor and the water pump. It receives signals from the microcontroller (or directly from the sensor’s output) and either connects or disconnects power to the pump.

3.3 Water Pump

The water pump is responsible for delivering water to the soil. It operates on 5V or 12V DC power and is controlled through the relay module. The type of pump used depends on the scale of the irrigation system. For this small-scale project, a mini submersible pump is sufficient.

3.4 5V Power Supply

The system is powered by a 5V DC power supply, which provides electricity to the sensor, relay module, and optionally the water pump. In larger systems, a separate power supply may be required for the pump due to higher power consumption.

4. Circuit Diagram and Working Principle

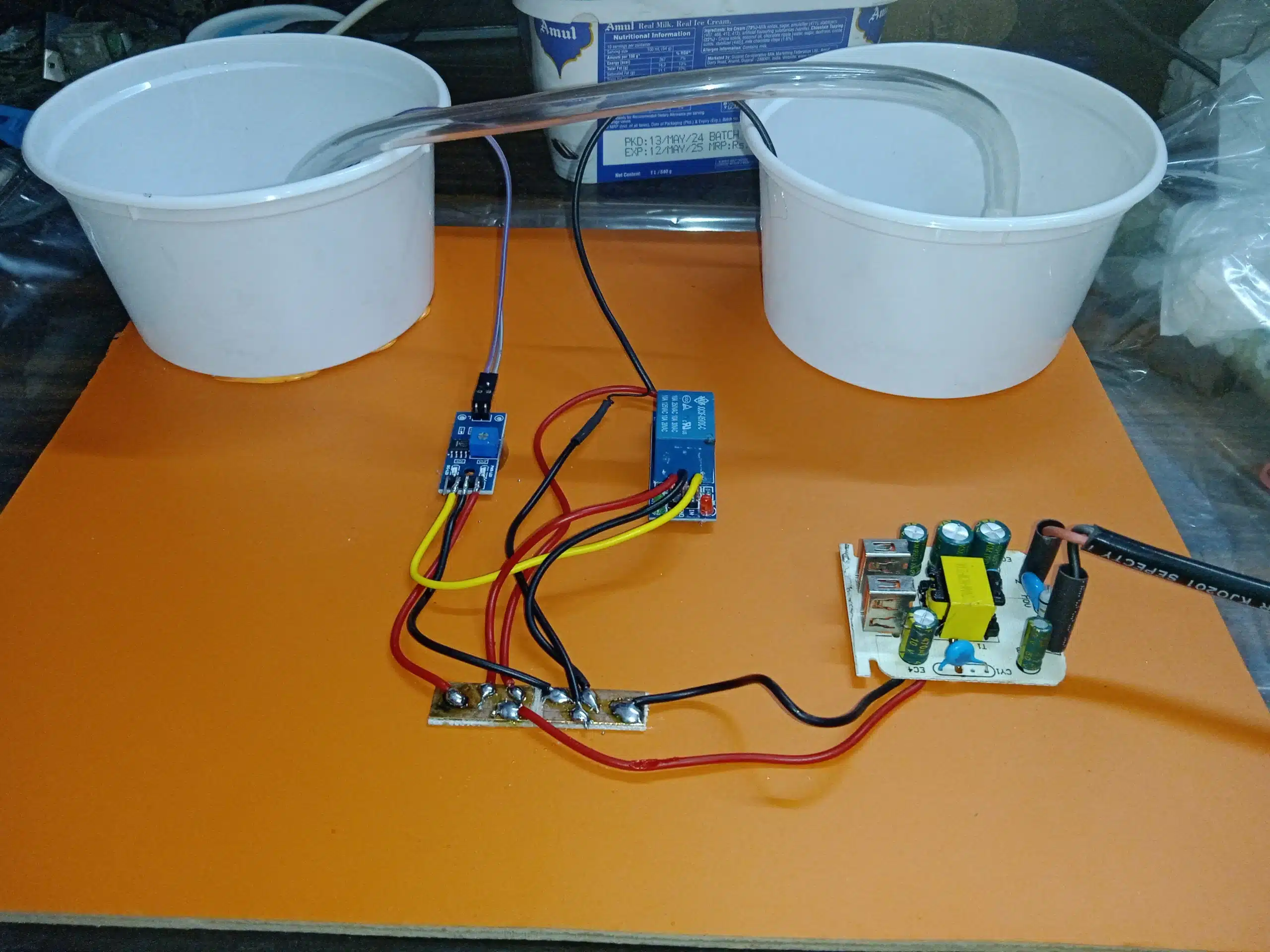

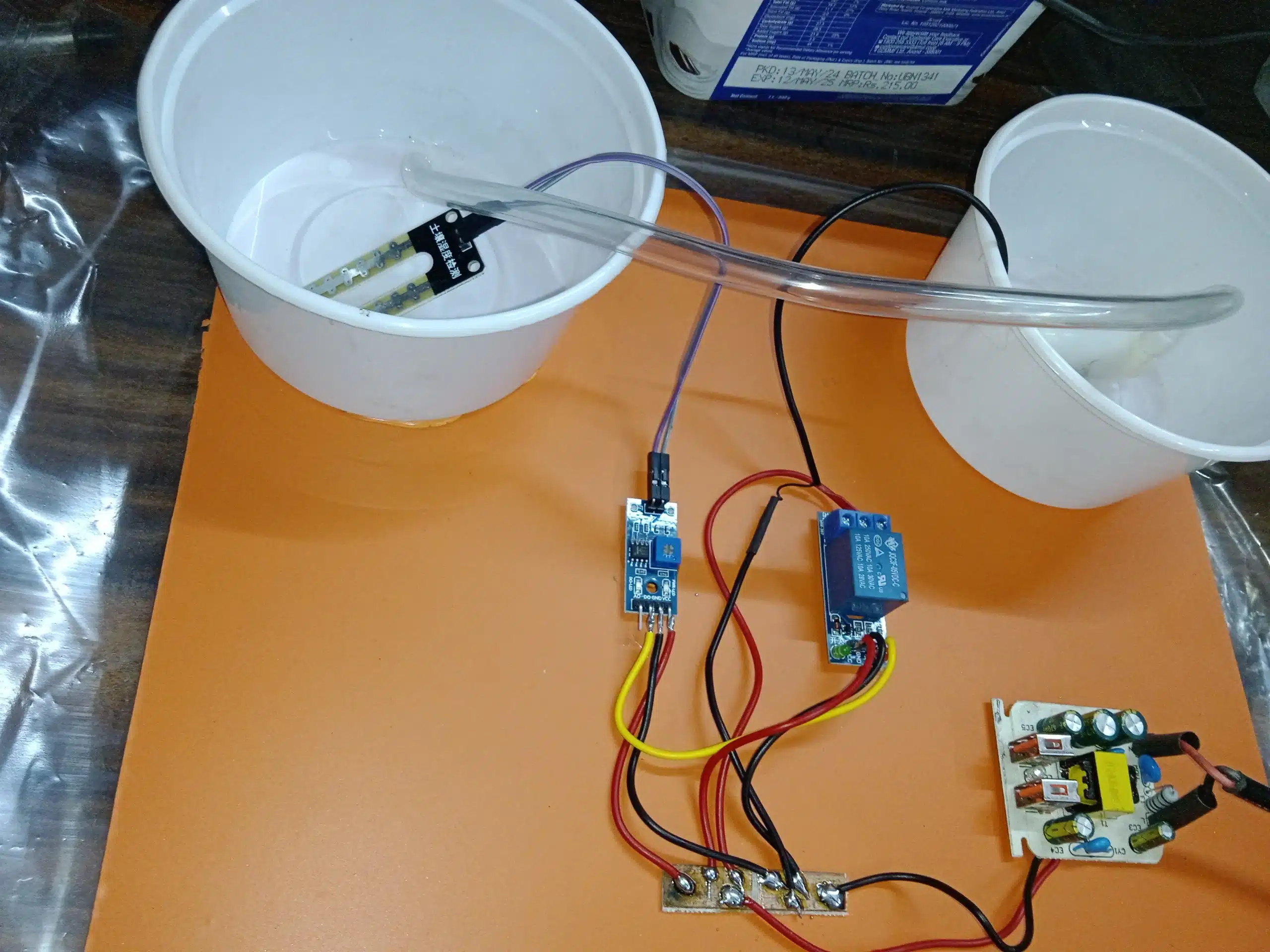

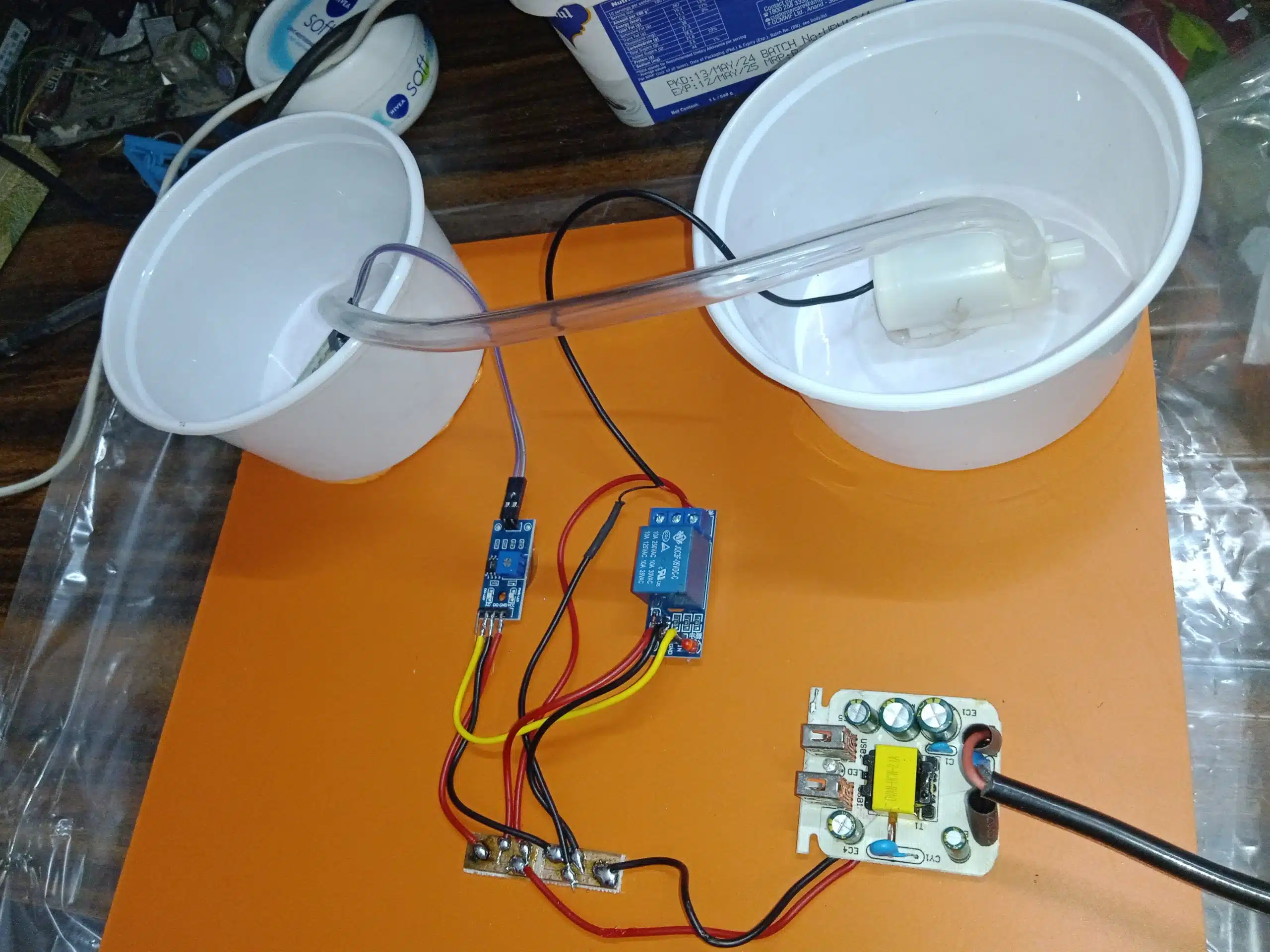

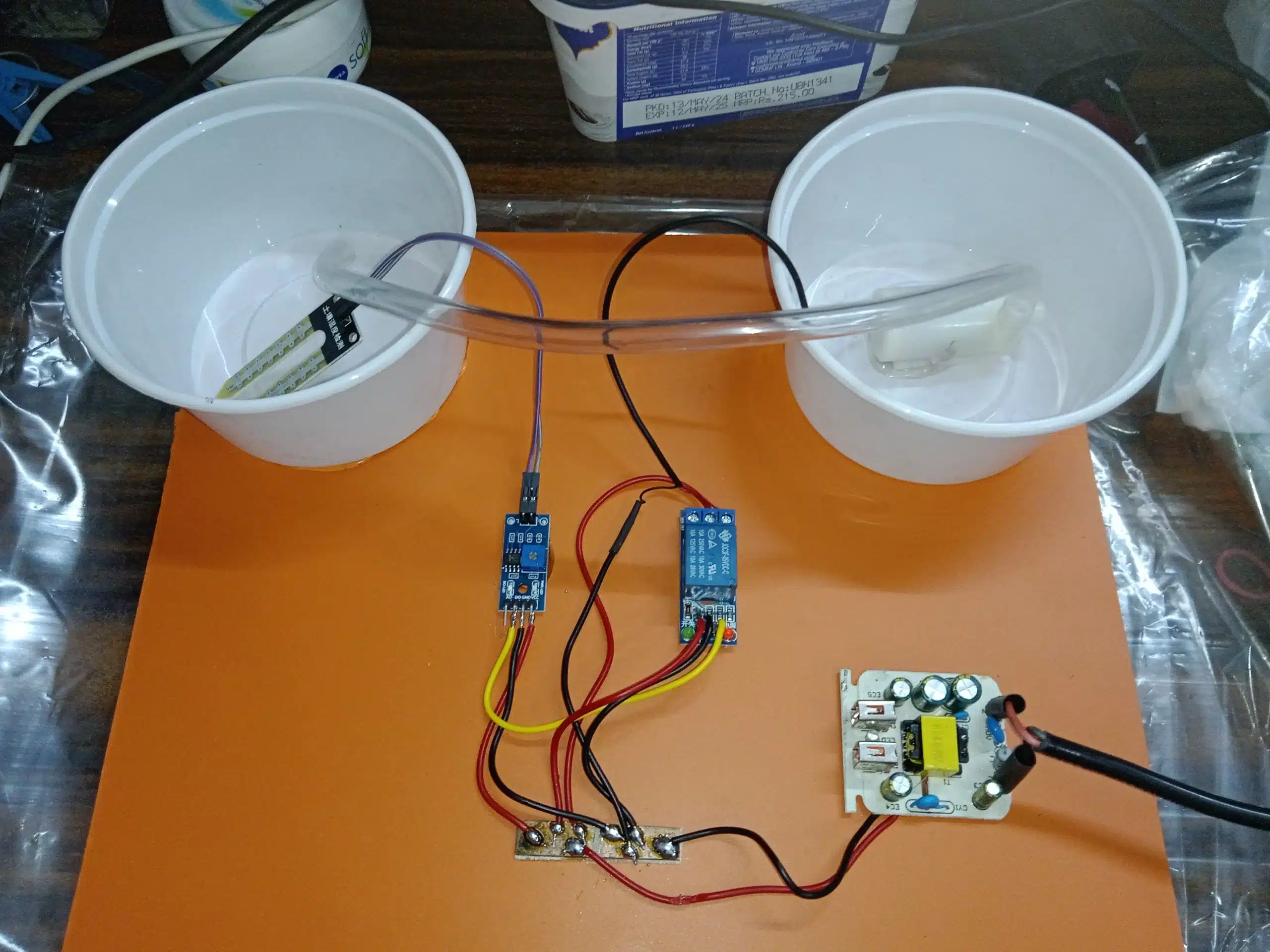

The components are connected as follows:

• The soil moisture sensor is inserted into the soil.
• The sensor’s output pin is connected to the input pin of the relay module (or to a microcontroller if one is used).
• The relay module controls the circuit that powers the water pump.
• The water pump draws water from a reservoir and delivers it to the soil when activated.
• All components are powered by the 5V power supply.

Working Principle:

• When the soil is dry, the moisture sensor outputs a signal indicating low moisture.
• The relay module receives this signal and activates the water pump.
• As the soil becomes moist, the sensor detects the change and sends a signal to deactivate the pump.
• The cycle repeats automatically without human intervention.

5. Working Process Step-by-Step

1. Initialization: The system is powered on and initializes all components.
2. Soil Moisture Monitoring: The sensor continuously checks the soil’s moisture content.
3. Condition Check:
   • If the sensor detects that the soil is dry (below a set threshold), it sends a signal to turn the relay ON.
   • The relay then completes the circuit, and the water pump starts.
4. Irrigation: The pump waters the soil.
5. Auto Shut-off: When the sensor detects that the moisture level has returned to normal, it sends a signal to turn the relay OFF, and the pump stops.
6. Repeat Cycle: The system remains in this loop, ensuring timely watering.

6. Advantages of the System

• Water Efficiency: Reduces water wastage by irrigating only when necessary.
• Low Cost: Uses inexpensive components readily available in the market.
• Automation: Minimizes the need for human monitoring and manual operation.
• Scalability: Can be expanded with more sensors and pumps for large-scale farming.
• Energy Efficient: Runs on low voltage and consumes minimal electricity.

7. Applications

• Home Gardening: Ideal for indoor and outdoor plant care.
• Agricultural Fields: Can be adapted for small to medium-sized farms.
• Greenhouses: Helps maintain consistent moisture for optimal plant growth.
• Research Projects: Useful in educational and academic demonstrations.

8. Limitations

• Sensor Accuracy: Inexpensive sensors may have inconsistent readings.
• Power Supply: A weak power source can affect the performance of the pump.
• Weather Dependence: Does not account for rain or other external moisture sources unless integrated with a weather sensor.
• No Data Logging: The basic version does not store or analyze data over time.

9. Future Enhancements

• Microcontroller Integration (e.g., Arduino): For better control and the ability to adjust thresholds.
• LCD Display or Mobile Notification: To show real-time status.
• Solar Power Supply: For energy sustainability in remote locations.
• IoT Integration: Enable remote monitoring and control via the internet.
• Multiple Zones: Divide a garden or farm into zones for more precise irrigation.

10. Conclusion

The Soil Moisture Controller project demonstrates a practical and efficient way to automate irrigation systems using simple electronic components. By turning the water pump on or off based on real-time soil moisture levels, this system helps conserve water and ensures healthy plant growth. With potential enhancements such as microcontroller integration and IoT connectivity, this basic system can be transformed into a smart irrigation solution suitable for modern farming.

This project not only introduces fundamental concepts of electronics and automation but also emphasizes the importance of sustainable practices in agriculture.
