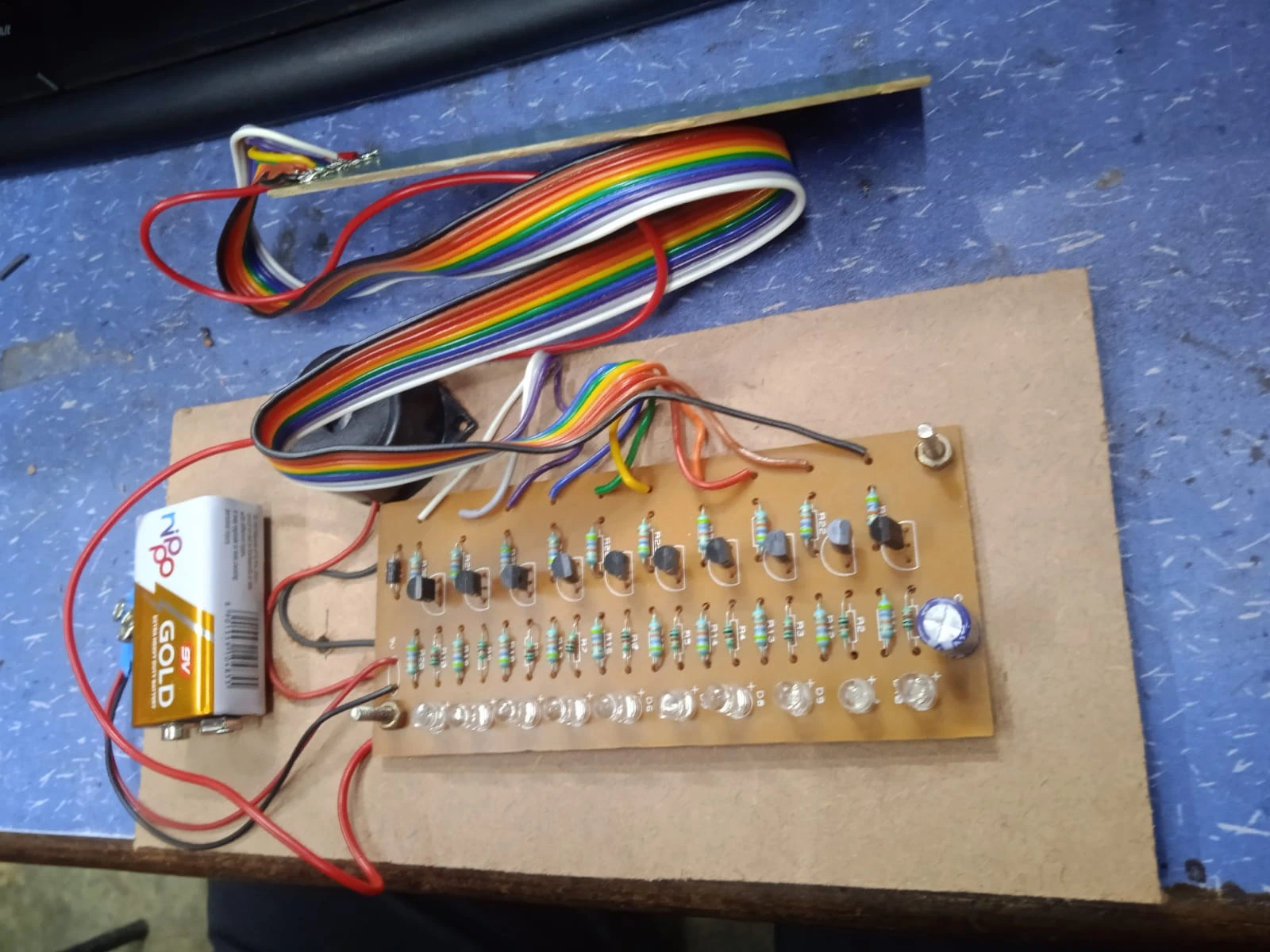

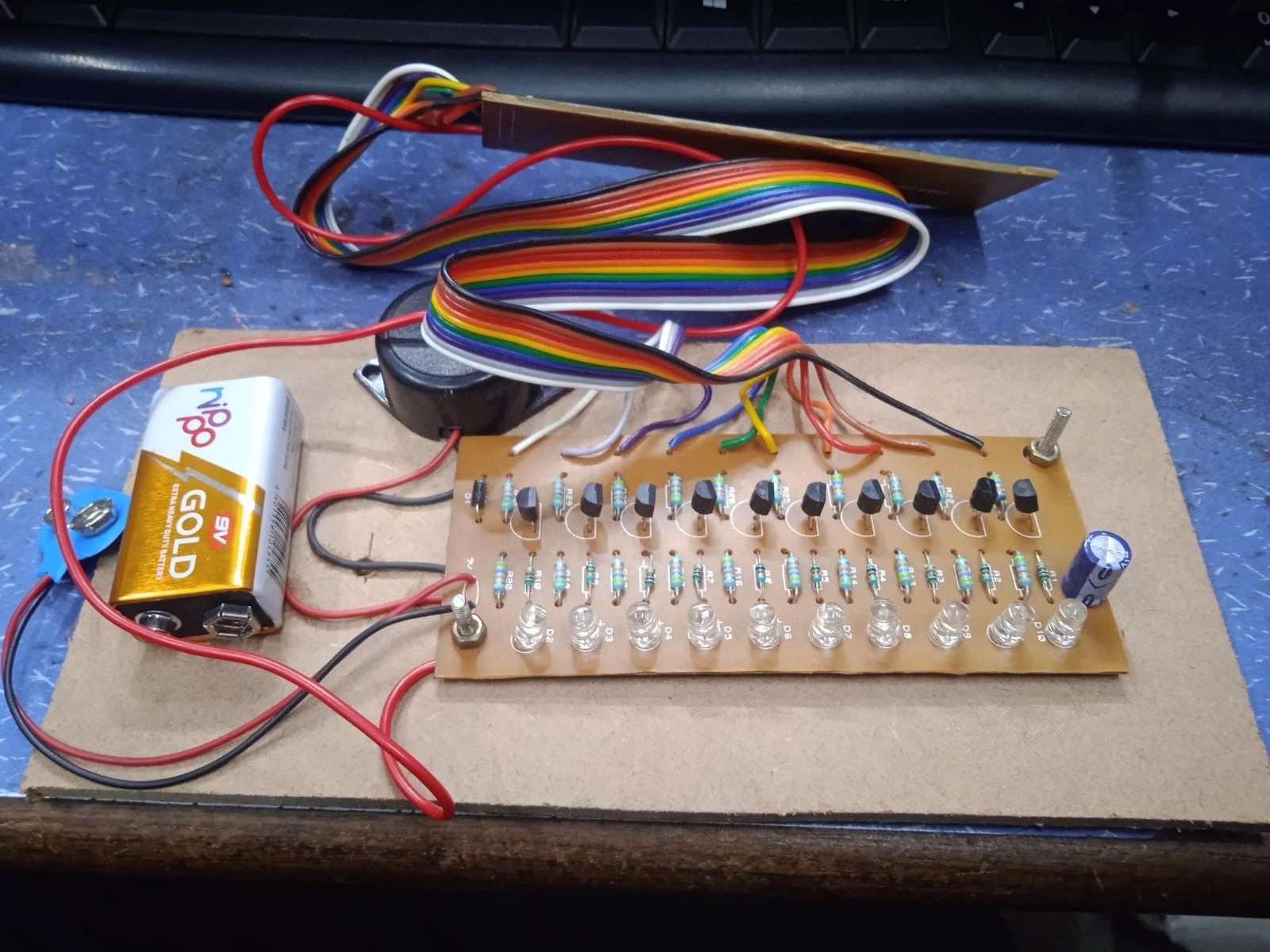

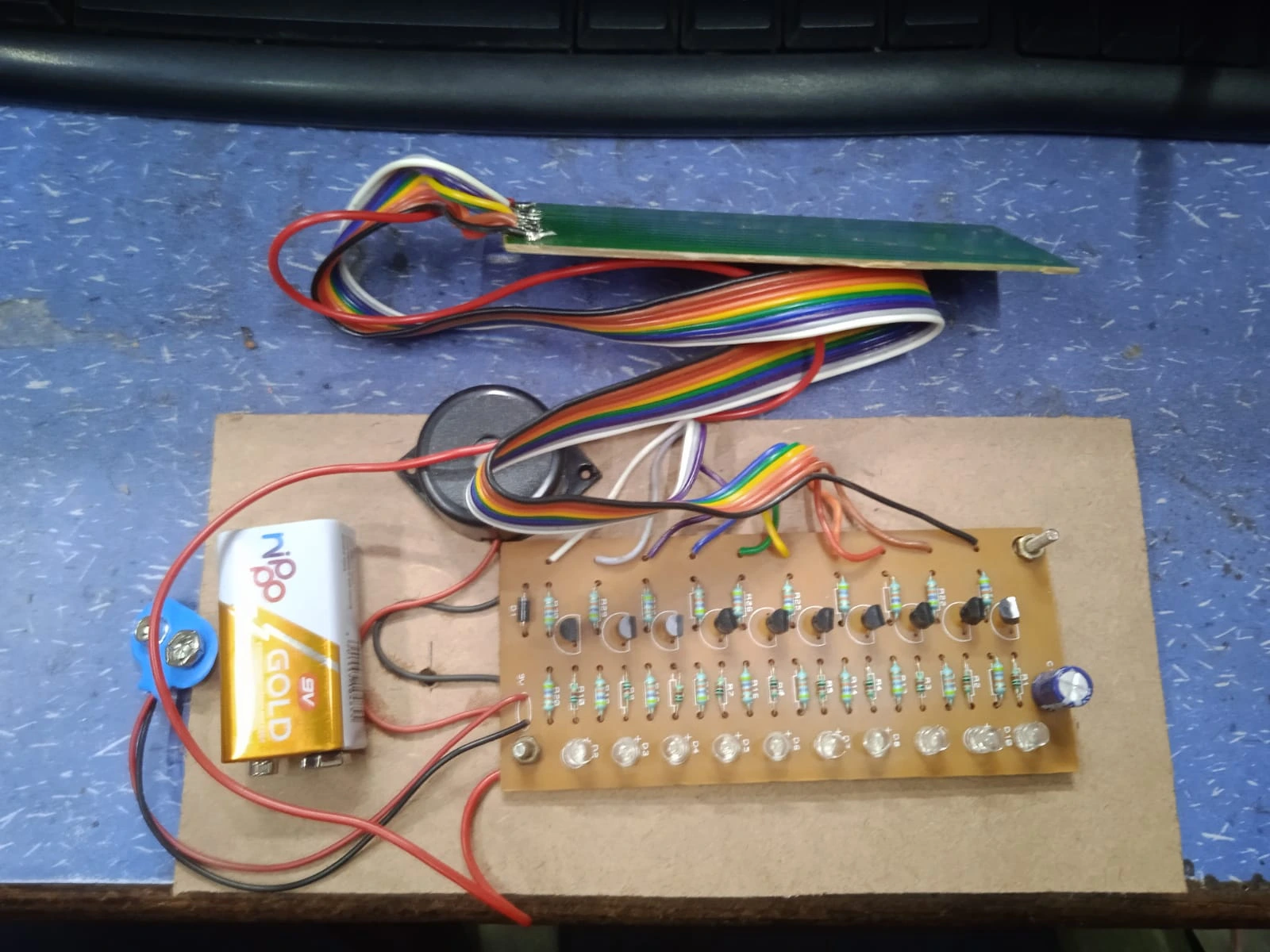

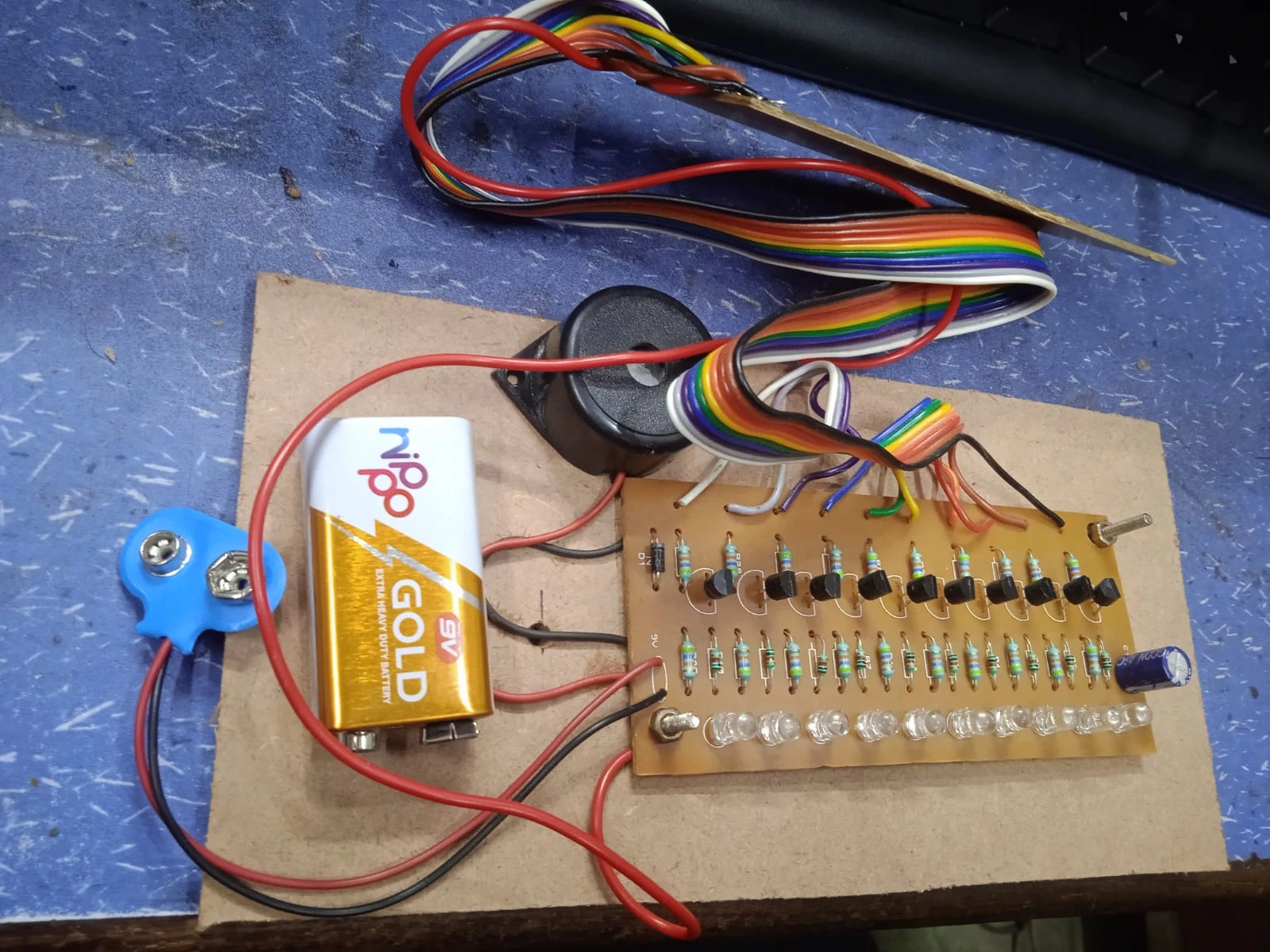

Water Level Indicator With Buzzer

Here’s a detailed explanation of the working principle of a Water Level Indicator with buzzer for 10 levels using PNP transistors and LEDs:

Key Components:

• PNP Transistors (10): Act as switches, controlled by water levels.
• LEDs (10): Visually indicate water levels.
• Buzzer: Produces an audible alert when the tank is full.
• Probes (10): Made of conductive material, immersed in water at different levels.
• Resistors (appropriate values): Limit current flow through LEDs and transistors.
• Power Source (e.g., 9V battery): Supplies power to the circuit.

Working Principle:

1. Water Conduction: Water acts as a conductor, completing circuits between probes and the positive power supply.
2. Transistor Activation: When water touches a probe, it connects the base of the corresponding PNP transistor to the positive supply, turning it on.
3. LED Illumination: The activated transistor allows current to flow through its collector-emitter path, lighting up the connected LED.
4. Buzzer Alarm: When the topmost probe is touched (indicating full tank), it activates a separate circuit that sounds the buzzer.

Circuit Design:

• Probes: Arrange probes at equal intervals along the tank’s height.
• Transistors and LEDs: Connect each PNP transistor’s base to a probe, collector to a resistor, and emitter to ground. Connect an LED in series with each resistor.
• Buzzer Circuit: Connect the topmost probe to a separate circuit with a PNP transistor and buzzer, similar to the LED circuits.

Additional Considerations:

• Resistor Values: Choose appropriate resistor values to prevent excessive current through LEDs and transistors.
• Probe Material: Use corrosion-resistant materials like stainless steel or copper for probes.
• Water Purity: Ensure water is reasonably pure to avoid excessive conductivity and false readings.
• Insulation: Properly insulate connections to prevent short circuits and water damage.
• Safety: Use a battery or isolated power supply for safety, especially when working with mains voltage.
