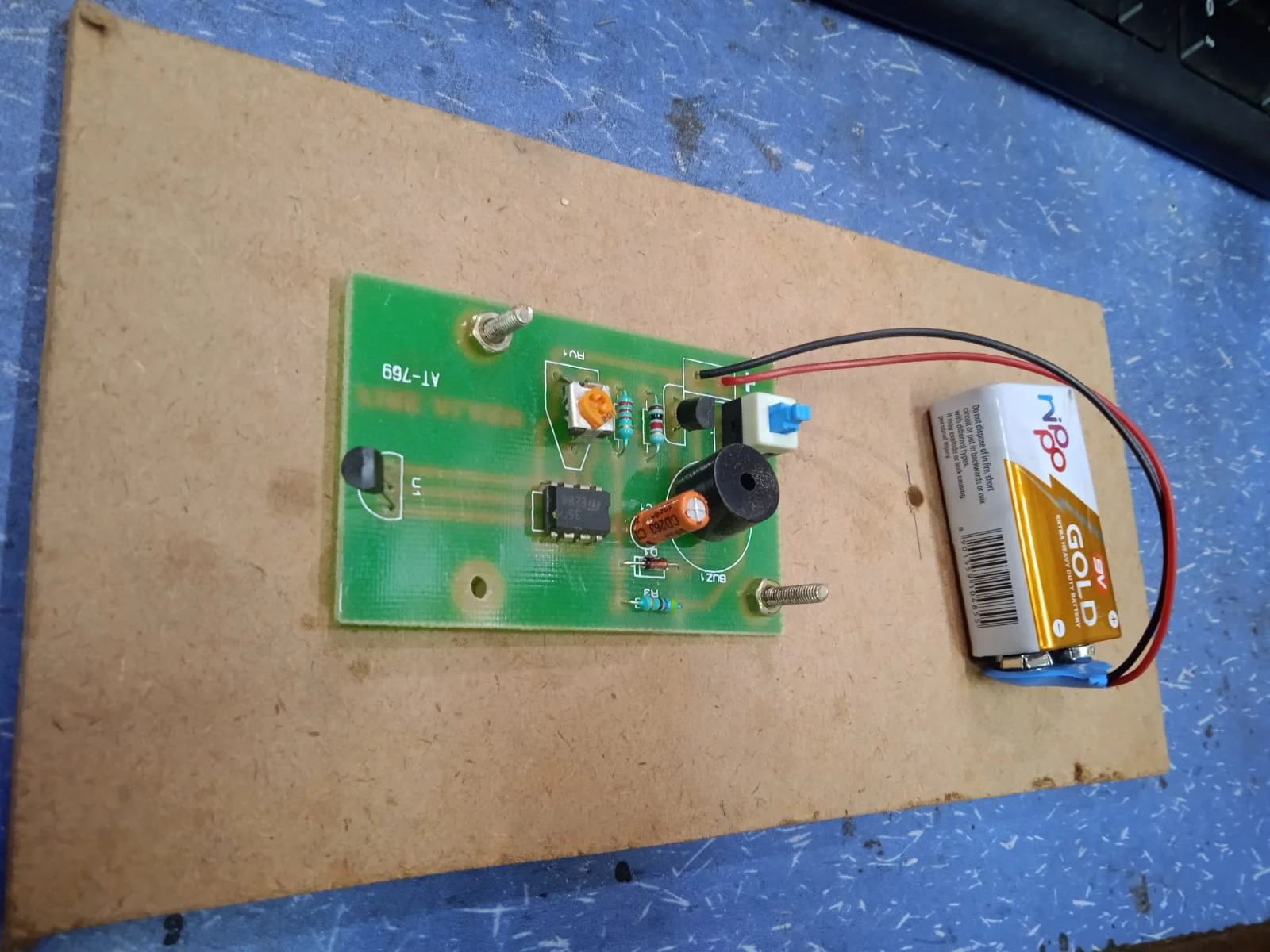

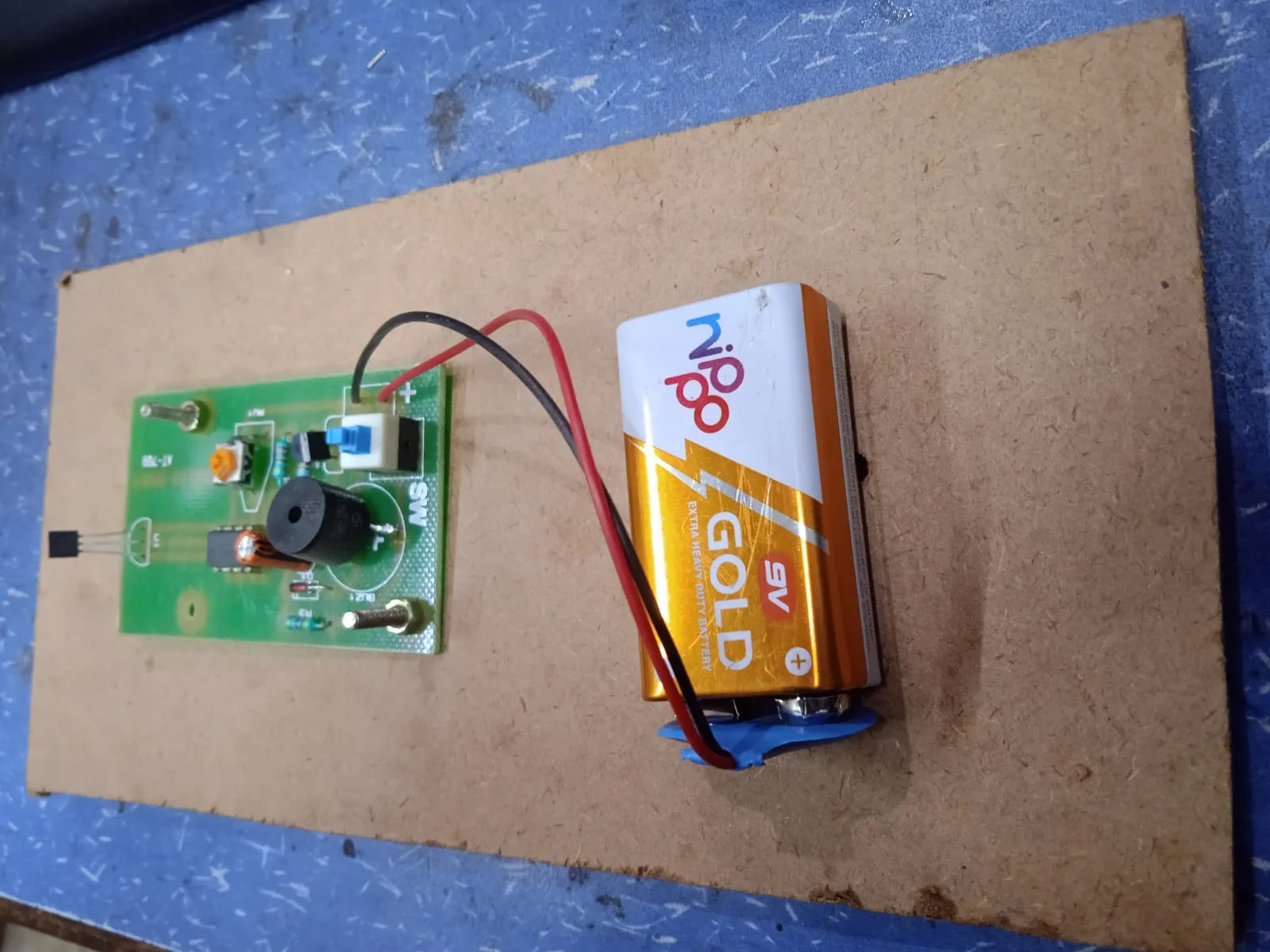

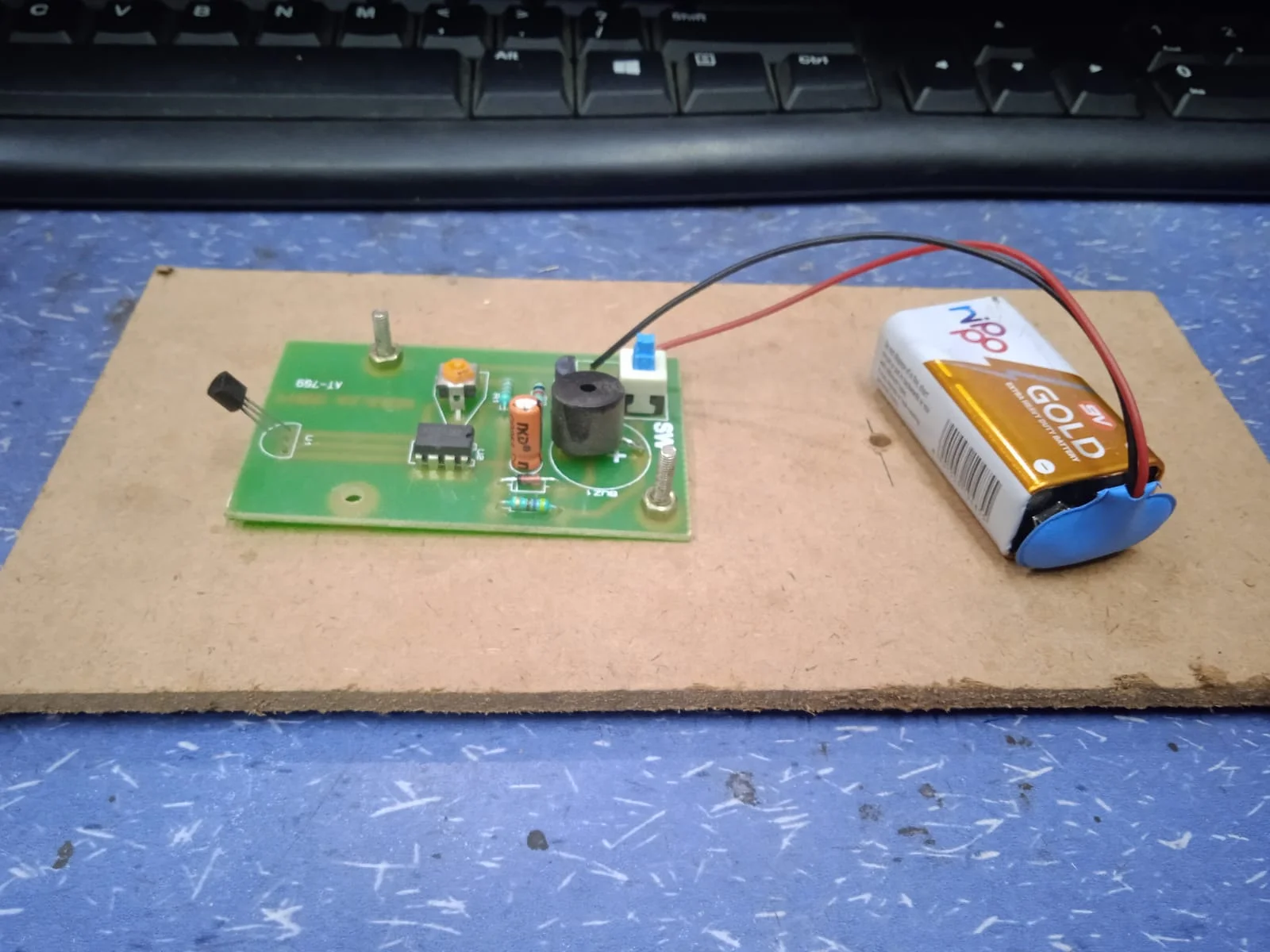

Fire Alarm

Creating your own fire alarm with a temperature sensor and an operational amplifier (op-amp) can be a fascinating learning experience, teaching you valuable electronics skills while potentially enhancing your home safety awareness. Remember, this project is not a substitute for professional fire protection systems, but it can be a valuable additional layer of precaution.

Here’s an outline for building a safe and responsible fire alarm using these components:

Materials:

• Op-amp IC (LM358 or similar)
• Temperature sensor (LM35DZ or equivalent)
• Diode (1N4148 or similar)
• Buzzer or piezo speaker
• 9V battery or power supply
• Breadboard
• Jumper wires
• Resistors (various values depending on circuit design)
• Potentiometer (optional)

Assembly:

1. Temperature Sensor Circuit:

   • Connect the VCC pin of the sensor to the +9V rail of your power source.
   • Connect the GND pin of the sensor to the ground rail of your power source.
   • Connect the OUT pin of the sensor to the non-inverting input (+) of the op-amp.

2. Op-Amp Comparator Circuit:

   • Connect the inverting input (-) of the op-amp to a voltage divider circuit created with two resistors. Choose resistor values to set your desired triggering temperature (e.g., 3.5V for 70°C with the LM35DZ).
   • Connect the reference voltage for the comparator. You can use a fixed voltage divider or a potentiometer for adjustable sensitivity.

3. Output Circuit:

   • Connect the output pin of the op-amp to a diode in forward bias configuration.
   • Connect the diode’s anode to the positive (+) terminal of the buzzer.
   • Connect the diode’s cathode to a resistor and then to the ground rail.

Optional features:

• LED indicator: Add an LED in parallel with the buzzer for visual confirmation of alarm activation.
• Adjustable sensitivity: Use a potentiometer in the reference voltage divider to adjust the triggering temperature.

Safety Considerations:

• Testing and Calibration: Test the fire alarm with a safe heat source like a hair dryer, gradually increasing the temperature and adjusting the threshold if needed. Remember, never test with anything directly flammable.
• Not a replacement: This project is for educational purposes only and should not be relied upon as your sole fire protection system.
• Professional Systems: Always install and maintain smoke detectors and professional fire alarm systems throughout your home according to manufacturer’s recommendations.
• Escape Plan and Drills: Regularly practice fire drills with your family and have a clear escape plan in case of an emergency.

Remember: Your safety is paramount. Use this project as a learning tool while never compromising on established fire safety practices.

Feel free to ask if you have any further questions about specific circuit design or component choices. Have fun learning and stay safe!
