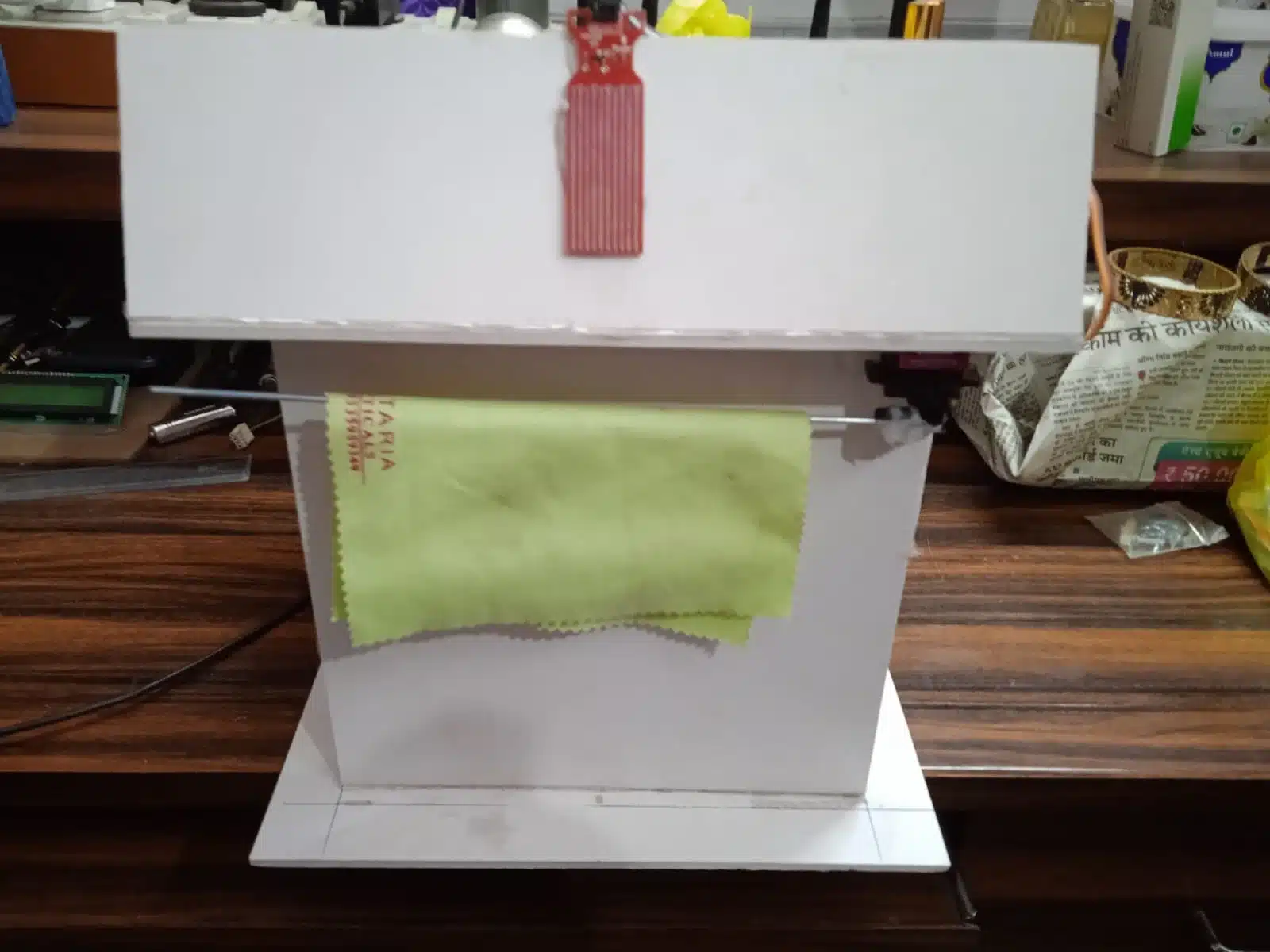

Automatic Cloths moves in Shed as Rain Detected

Project Report: Automated Clothes Protection System Using Arduino

Introduction

The objective of this project is to create an automated system that protects clothes from rain by moving them from an open area to a sheltered location. This system utilizes an Arduino Uno, a rain sensor, and a servo motor, enabling efficient and timely responses to weather changes.

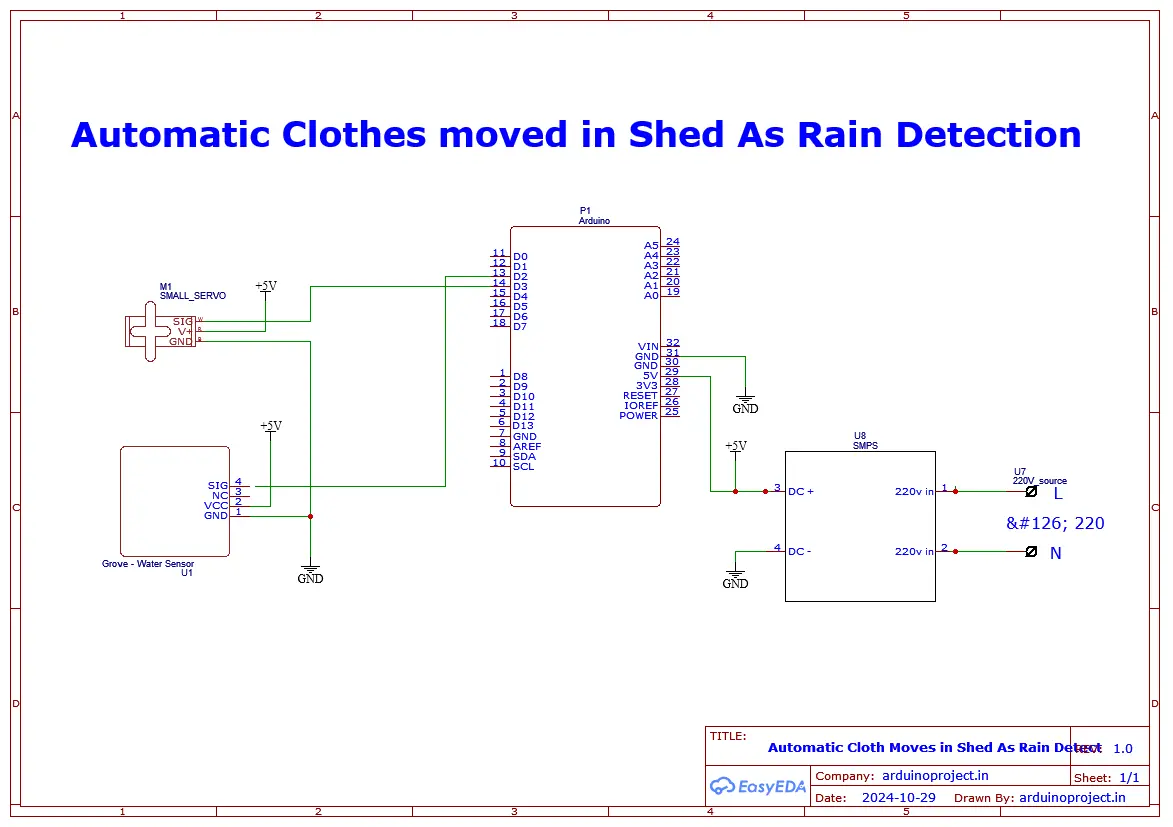

Components Used

• Arduino Uno: The microcontroller that processes sensor data and controls the servo motor.
• Rain Sensor: Detects rainfall and sends signals to the Arduino.
• Servo Motor: Moves the clothes from an open area to a shed.
• 5V DC Power Supply: Powers the Arduino and servo motor.

Working Principle

1. Rain Detection: The rain sensor continuously monitors environmental conditions. When it detects rainfall, it sends a digital signal to the Arduino Uno.
2. Signal Processing: Upon receiving the rain signal, the Arduino executes a pre-programmed routine.
3. Servo Motor Activation: The Arduino commands the servo motor to rotate its shaft, effectively moving the clothes from the open area to the shed.
4. Return to Original Position: Once the rain stops (sensor detects dry conditions), the system can be programmed to return the clothes to their original position.

Testing and Results

The system was tested under various weather conditions. The rain sensor accurately detected rainfall, and the servo motor responded by moving the clothes to the shed as intended. The delay between movements ensured that the servo had enough time to complete its rotation.

Conclusion

This automated clothes protection system is an effective solution for preventing clothes from getting wet during unexpected rain. The use of Arduino, rain sensors, and servo motors demonstrates the potential of integrating simple components for practical applications. Future enhancements could include adding a notification system to inform users when the clothes are moved or integrating a solar panel for energy efficiency.

Future Improvements

• Integration with Weather Forecasting: Utilizing an API to predict rain.
• User Notification System: SMS or app notifications when clothes are moved.
• Solar Power Option: To enhance energy efficiency.
